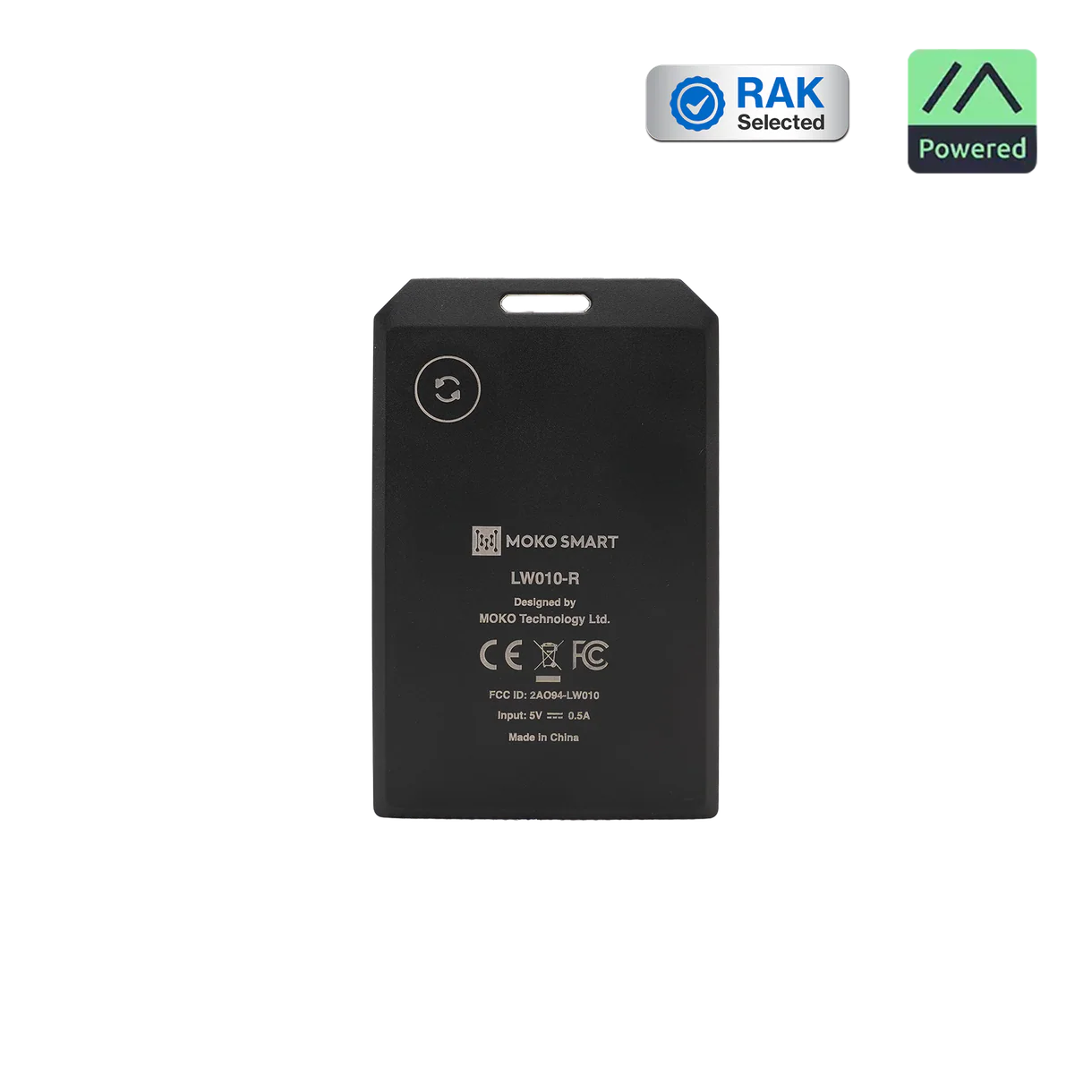

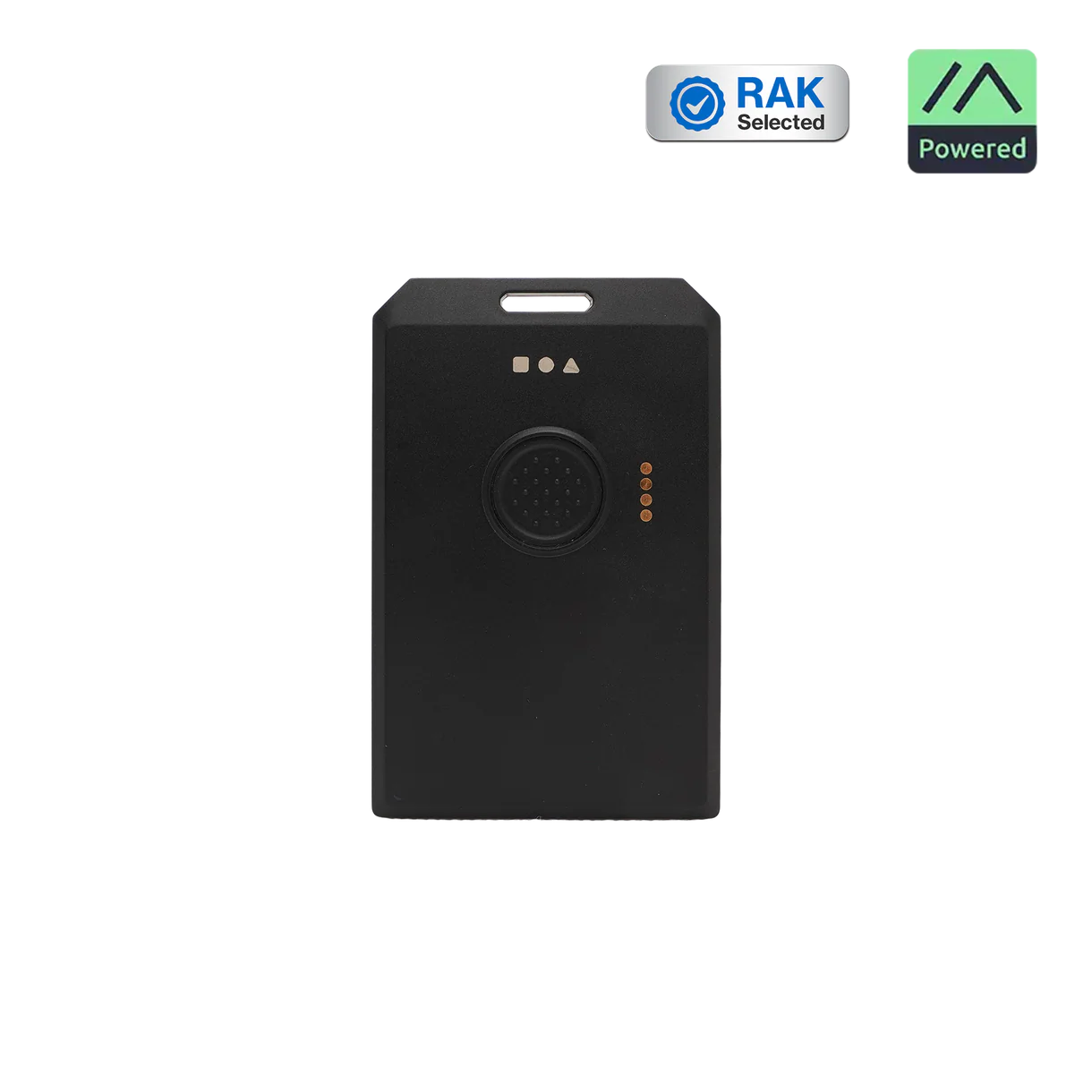

WisMesh Tag - Pocket-Sized Meshtastic & MeshCore GPS Tracker (EU868)

The smallest ready-to-use Meshtastic device you can buy. The WisMesh Tag packs GPS, LoRa, and Bluetooth into a rugged, pocket-sized tracker that weighs almost nothing. Charge it, turn it on, pair it with the Meshtastic app, and your position is shared across the mesh. No assembly, no flashing, no accessories needed.

Pre-flashed with Meshtastic firmware. Also compatible with MeshCore — reflash via web flasher in minutes. One of our customers put it best: "Just works, low power consumption, great connectivity. GPS is also extremely reliable."

Key Features

• Pocket-sized — compact card-format enclosure, fits in any pocket, pouch, or bag
• Built-in GPS (GNSS) — automatic position sharing on the mesh with fast satellite lock (AT6558R module)
• IP66 waterproof — dustproof and protected against heavy rain and splashes
• 1000 mAh battery — 2–3 days of battery life with GPS active, charged via magnetic cable
• RAK4631 nRF52 module — ultra-low power consumption with Semtech SX1262 LoRa transceiver
• EU868 frequency — configured for legal operation across the EU, UK, Norway, and Switzerland
• Integrated antennas — LoRa, BLE, and GPS antennas built in, nothing to connect or attach
• Tactile buttons — user button and reset button accessible without opening the enclosure
• Status LEDs — clear visual feedback for power, charging, and connectivity

Ideal For

• Hiking and outdoor activities — share your GPS position with your group without cell coverage
• Asset and equipment tracking — attach it to gear, vehicles, or tools on large sites
• Team coordination — field teams, event staff, or disaster relief crews staying connected off-grid
• MeshCore companion — ultra-compact node for the growing European MeshCore network
• Emergency preparedness — a pocket-sized backup communication device that works when phones don't.

Specs

• Module: RAK4631 (Nordic nRF52840 + Semtech SX1262)
• GNSS: AT6558R (GPS, GLONASS, BeiDou)
• Battery: 1000 mAh Li-Ion, magnetic charging
• Enclosure: IP66 rated
• Frequency: EU868 (863–870 MHz)
• Firmware: Meshtastic (pre-flashed), MeshCore compatible
• Connectivity: LoRa + BLE (integrated antennas)
• Buttons: User button + Reset button
• Charging: Magnetic cable (included)

What's in the Box

• 1 × WisMesh Tag (assembled, pre-flashed with Meshtastic)
• 1 × Magnetic charging cable

Key Benefits of WisMesh Tag

WisMesh Tag offers instant Meshtastic setup, enhanced GPS accuracy, and durable design. It is ideal for hassle-free outdoor tracking and messaging.

• Faster, more reliable GPS tracking: Optimized for quicker GPS fixes, so your location updates are timely and accurate.
• Compact form built for real use: Slim, credit card-sized design fits in any pocket or pouch, making it ideal for discreet, everyday outdoor tracking.
• Strong and efficient mesh performance: Built with the nRF52840 and SX1262 LoRa module, ensuring consistent long-range communication across your Meshtastic mesh network.
• Easier visual separation and spotting – Use the limited Blue Edition to color-code teams, assets, or roles while keeping the same rugged performance as the black WisMesh Tag.

Use Case #1: Off-Grid Location Tracking

When coverage disappears, the WisMesh Tag keeps teams connected. During hikes, bikepacking trips, or remote surveys, it enables location sharing and messaging through a reliable mesh network. No cell service needed.

Use Case #2: Field Asset Coordination

Deployed across job sites, WisMesh Tags serve as real-time asset tracking LoRaWAN nodes of tools, gear, and personnel. Teams benefit from the rugged design and long battery life, reducing downtime and simplifying logistics.
